What is this part?

General discussion about Remington 870 shotgun.
Post Reply
rdsmith3
Shotgunner
Posts: 21
Joined: Mon Jan 16, 2012 3:23 pm

What is this part?

Post by rdsmith3 » Sun Feb 05, 2012 12:01 am

I was disassembling my shotgun to clean it, and I noticed this small part on the table (the little thing next to the orange follower). What is it? Where does it go?


User avatar
vmax
Experienced Shotgunner
Posts: 64
Joined: Sat Jan 21, 2012 3:17 am
Location: Ontario Canada

Re: What is this part?

Post by vmax » Sun Feb 05, 2012 2:58 am

Looks like a magazine cap detent. it goes into a small hole on your barrel ring. Located on the bottom of your barrel there is a ring that slides over the tube magazine when you remove or install it. the detent keeps the mag cap tight
Don't buy it if you can't sell it.

User avatar
Vitaly
Owner
Posts: 1269
Joined: Tue Jan 03, 2012 11:27 am

Re: What is this part?

Post by Vitaly » Sun Feb 05, 2012 10:39 am

rdsmith3, vmax,

What Remington 870 variant has that part? Police?
http://www.Rem870.com - Blog about the Remington 870 Shotgun

rdsmith3
Shotgunner
Posts: 21
Joined: Mon Jan 16, 2012 3:23 pm

Re: What is this part?

Post by rdsmith3 » Sun Feb 05, 2012 12:24 pm

I e-mailed Remington to ask them what it is.

badboybeeson
Moderator of the S&J Hardware Forum
Posts: 186
Joined: Sun Jan 22, 2012 11:20 pm

Re: What is this part?

Post by badboybeeson » Sun Feb 05, 2012 7:53 pm

rdsmith3 wrote:I e-mailed Remington to ask them what it is.
it is the barrle dedent, you should be looking for a small spring as well.
bbb

User avatar
vmax
Experienced Shotgunner
Posts: 64
Joined: Sat Jan 21, 2012 3:17 am
Location: Ontario Canada

Re: What is this part?

Post by vmax » Sun Feb 05, 2012 10:15 pm

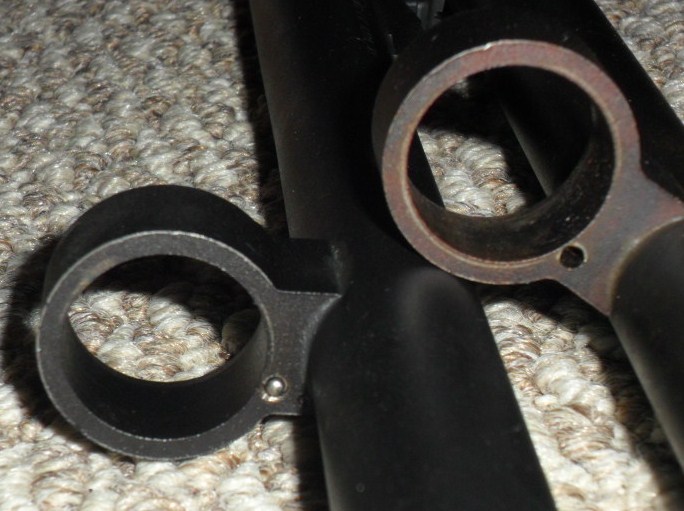

As stated before it is a magazine cap detent PN #F17451. It fits over a small spring in a hole in your barrel ring. I have a pic for you. One has detent the other has only a small hole for a detent. Don't worry it is not completly nessesary. There are other ways to keep your mag nut tight. Use a rubber o ring that fits over the treads of your magazine or a wave washer from a remigton 1100 forend. When installed before you screw on your mag nut they will keep the nut tight. Also replacing the detent and spring is a quick job for your gunsmith. To hold the spring and detent in the barrel ring will have to be staked.
Attachments
Don't buy it if you can't sell it.

rdsmith3
Shotgunner
Posts: 21
Joined: Mon Jan 16, 2012 3:23 pm

Re: What is this part?

Post by rdsmith3 » Mon Feb 06, 2012 3:16 am

Thanks. I am not happy that this thing popped out. I just bought it in December.

User avatar
RichNZ
Global Moderator
Posts: 96
Joined: Sun Jan 22, 2012 2:07 pm

Re: What is this part?

Post by RichNZ » Mon Feb 06, 2012 4:45 am

Nice spotting Vmax.

It was on the tip of my brain, just couldn't connect the two.
